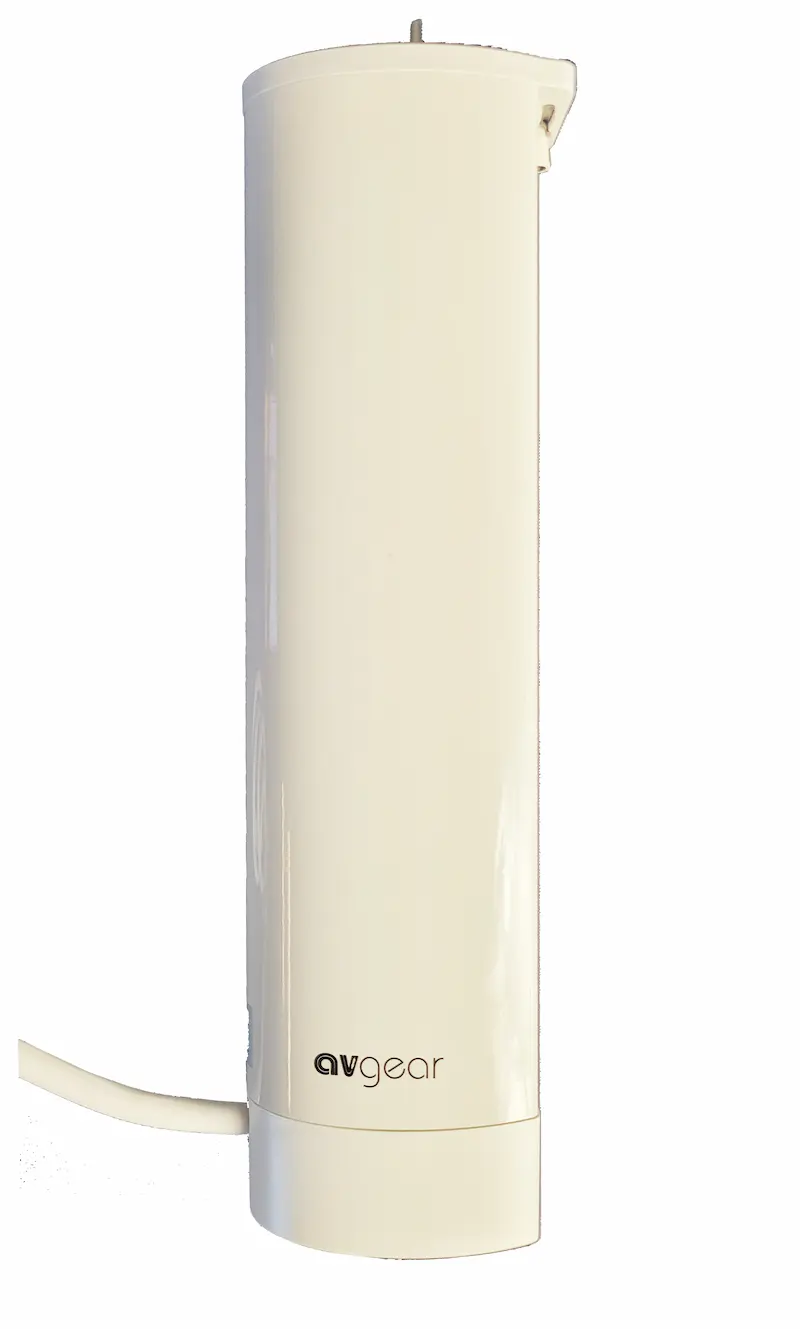

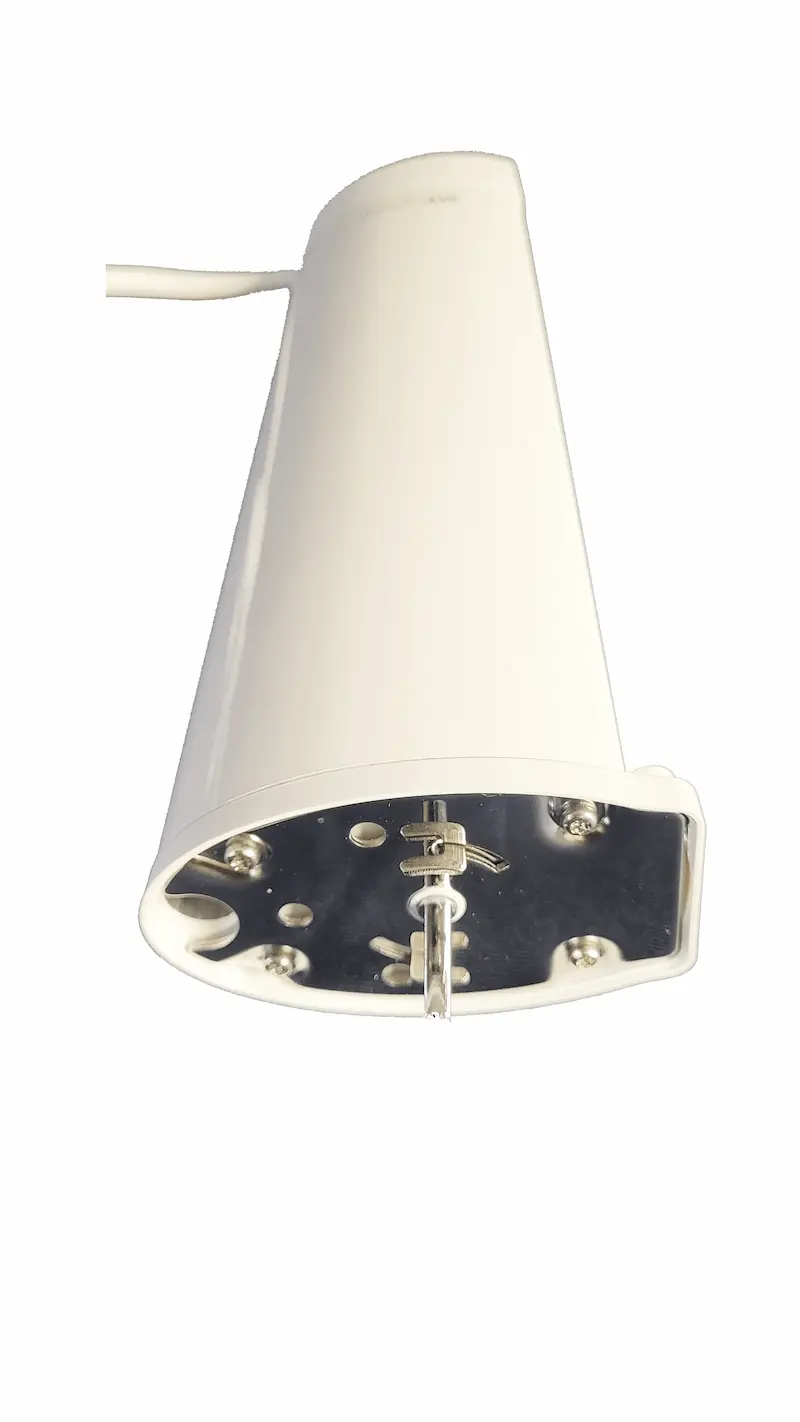

AVG-CM-AC
Installing your own motorized window coverings is now simple and convenient, with stand-alone controls and integration option offering an unparalleled experience. Elevate your space with smart and effortless control.
Note: Appropriate Gateway required for integration.
| General | |
| Model Number | AVG-CM-AC |
| Curtain Track Length | 12m Maximum |
| Moving Speed | 14cm/s |
| Rated Torque | 2Nm |
| Operating Temperature | -20~65°C |
| Operating Humidity | 0~80% |
| Power Supply | 100-240V AC 50/60Hz |
| Power Consumption | 30W |
| Power Cable Length | 200cm, connector @ 20cm |

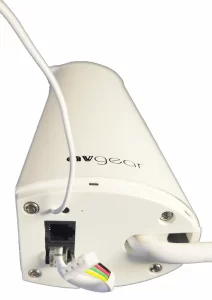

| Interface | RJ11 |
| Button | Coding / Setting button |
| Track Set | Supplied as ordered |
| Maximal Load | 30Kg |
| Radio | |
| Radio Protocol | 433.92 MHz |
| Signal Range(Open Field) | 20m |
| Construction | |
| Color | White |
| Dimension | 300*75*50mm |
| Weight | 1.4kg |
| Casing | ABS, aluminum |
