UDA2-V2

AVG-UDA2-V2

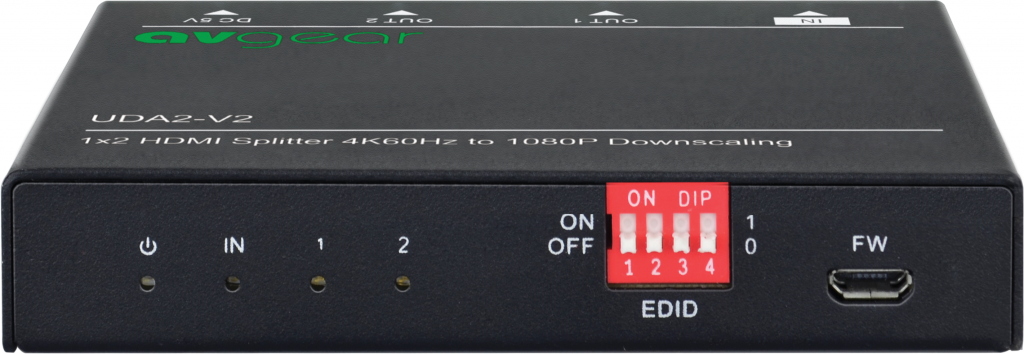

The AVG-UDA2-V2 HDMI 2.0 1×2 Splitter, which can distribute one HDMI input to two outputs. The splitter supports HDMI video resolutions up to 4K@60Hz 4:4:4, 1080P 3D, and multichannel audio formats. Besides passing EDID information from the display, there are multiple built-in EDID settings can be selected by the 4-pin DIP switch on the front panel. The splitter supports convenient firmware updates through the Micro-USB port.

FEATURES

SPECIFICATIONS

  • Supports HDMI 2.0 and video resolutions up to 4K@60Hz 4:4:4.
  • HDMI input supports HDCP 2.2 and the outputs support HDCP Active or HDCP Passive mode.
  • Supports video resolution down-scaling, the 4K input can be automatically downscaled to 1080P output for compatibility with 1080P display.
  • 18Gbps high bandwidth.
  • Advanced EDID management: multiple built-in EDID settings can be selected.
  • Built-in equalizer for signal enhancement to avoid signal attenuation in transmission.
  • Supports CEC pass-through.
  • Provides LEDs to indicate the current operating status.
  • Firmware upgrade by Micro-USB port.
USER MANUAL
SCHEMATIC
CUT SHEET
SAVANT PROFILE

SAVANT Driver coming soon.

Video Input
Input(1) HDMI
Input Connector(1) Type-A female HDMI
HDMI Input ResolutionUp to 4Kx2K@60Hz 4:4:4 8bit
HDMI Standard2.0
HDCP Version2.2, 1.4 compliant
CECSupported



Video Output

Output(2) HDMI
Output Connector(2) Type-A female HDMI
HDMI Output ResolutionUp to 4Kx2K@60Hz 4:4:4 8bit
HDMI Standard2.0
HDCP Version2.2, 1.4 compliant
CECSupported



Control

Control Part(1) EDID 4-pin DIP switch, (1) Micro-USB port



General

Bandwidth18Gbps
HDMI 2.0 Cable Length

4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 15m,

1080P ≤ 20m

Operation Temperature-10℃ ~ +55℃
Storage Temperature-25℃ ~ +70℃
Relative Humility10%-90%
Power SupplyInput:100V~240V AC; Output: 5V DC 1A
Power Consumption1.5W (Max)
Dimension (W*H*D)96.0mm x 17.6mm x 70.4mm
Net Weight185g
